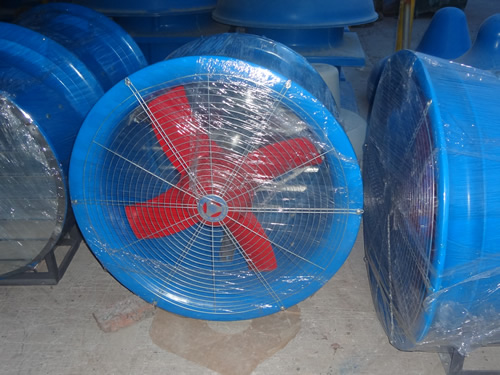

玻璃钢轴流风机
主要部件简介
1、风筒风机座：采用玻璃钢制作，具有质轻、耐腐蚀等特点，且与建筑物结构设计完美融合。
2、风帽：采用玻璃钢制作，外表光洁、曲线优美、上百种颜色任选。
3、叶片：采用玻璃钢制作，强度高、使用寿命长、稳定性好。
4、百叶：采用玻璃钢制作，开合灵活，通风性能良好，开启无碰撞声。
5、防鸟网、安全网：采用金属网，安全性能好。
6、电机：采用低噪声防水电机，运转性能稳定。
T35-11轴流式风机性能表
|
机号 |
叶轮直径（φmm） |
叶轮周速
（m/s)
|
主轴转速（r/min) |
叶片角度（°） |
风量（m3/h） |
全压（mmH2O） |
配用电机 |
|
|
型号 |
功率（KW) |
|||||||
|
2.8
|
280 |
42.5
|
2900
|
15 |
1649 |
15.5 |
YSF-5622 |
0.120 |
|
20 |
2167 |
17.2 |
YSF-5632 |
0.180 |
||||
|
25 |
2685 |
17.7 |
YSF-5632 |
0.180 |
||||
|
30 |
2921 |
19.0 |
YSF-6322 |
0.350 |
||||
|
35 |
3202 |
23.7 |
YSF-6322 |
0.370 |
||||
|
21.5 |
1450 |
15 |
826 |
3.9 |
YSF-5014 |
0.025 |
||
|
20 |
1086 |
4.4 |
YSF-5014 |
0.025 |
||||
|
25 |
1346 |
4.5 |
YSF-5014 |
0.040 |
||||
|
30 |
1464 |
4.9 |
YSF-5024 |
0.040 |
||||
|
35 |
1605 |
6.1 |
YSF-5024 |
0.040 |
||||
|
3.15
|
315
|
47.8 |
2900 |
15 |
2339 |
19.6 |
YSF-6321 |
0.180 |
|
20 |
3074 |
21.8 |
YSF-6322 |
0.250 |
||||
|
25 |
3810 |
22.4 |
YSF-6332 |
0.370 |
||||
|
30 |
4141 |
24.2 |
YSF-7122 |
0.550 |
||||
|
35 |
4545 |
30.0 |
YSF-7122 |
0.550 |
||||
|
23.9 |
1450
|
15 |
1169 |
4.9 |
YSF-5014 |
0.025 |
||
|
20 |
1537 |
5.4 |
YSF-5024 |
0.040 |
||||
|
25 |
1905 |
5.6 |
YSF-5024 |
0.040 |
||||
|
30 |
2072 |
6.0 |
YSF-5614 |
0.060 |
||||
|
35 |
2273 |
7.5 |
YSF-5624 |
0.090 |
||||
|
3.55 |
355
|
53.9 |
2900
|
15 |
3367 |
24.6 |
YSF-7112 |
0.370 |
|
20 |
4426 |
27.7 |
YSF-7122 |
0.550 |
||||
|
25 |
5484 |
28.4 |
YSF-7122 |
0.550 |
||||
|
30 |
5965 |
30.6 |
YSF-7132 |
0.750 |
||||
|
35 |
6542 |
38.0 |
YSF-8022 |
1.100 |
||||
|
27.0
|
1450 |
15 |
1680 |
6.2 |
YSF-5024 |
0.040 |
||
|
20 |
2208 |
6.9 |
YSF-5614 |
0.060 |
||||
|
25 |
2737 |
7.1 |
YSF-5624 |
0.090 |
||||
|
30 |
2977 |
7.6 |
YSF-5624 |
0.090 |
||||
|
35 |
3265 |
9.5 |
YSF-6314 |
0.120 |
||||
|
4.0
|
400
|
60.7 |
2900
|
15 |
4806 |
31.6 |
YSF-7122 |
0.550 |
|
20 |
6316 |
35.2 |
YSF-8022 |
1.100 |
||||
|
25 |
7826 |
36.1 |
YSF-8022 |
1.100 |
||||
|
30 |
8513 |
38.8 |
YSF-8022 |
1.100 |
||||
|
35 |
9336 |
48.3 |
YT90S-2 |
1.500 |
||||
|
30.4 |
1450
|
15 |
2406 |
7.9 |
YSF-5624 |
0.090 |
||
|
20 |
3163 |
8.8 |
YSF-6314 |
0.120 |
||||
|
25 |
3920 |
9.0 |
YSF-6314 |
0.120 |
||||
|
30 |
4263 |
9.7 |
YSF-6324 |
0.180 |
||||
|
4.5 |
450 |
34.2 |
1450 |
15 |
3427 |
10.0 |
YSF-7114 |
0.120 |
|
20 |
4504 |
11.2 |
YSF-6314 |
0.180 |
||||
|
25 |
3168 |
11.5 |
YSF-6324 |
0.250 |
||||
|
30 |
6070 |
12.3 |
YSF-7114 |
0.370 |
||||
|
35 |
6658 |
15.3 |
YSF-7124 |
0.370 |
||||
|
5.0 |
500 |
38.0 |
1450 |
15 |
4700 |
12.4 |
YSF-7114 |
0.250 |
|
20 |
6178 |
13.8 |
YSF-7124 |
0.370 |
||||
|
25 |
7655 |
14.1 |
YSF-7124 |
0.370 |
||||
|
30 |
8327 |
15.2 |
YSF-8014 |
0.550 |
||||
|
35 |
9133 |
18.9 |
YSF-8024 |
0.750 |
||||
|
25.1 |
960 |
15 |
3124 |
5.4 |
YSF-8026 |
0.370 |
||
|
20 |
4129 |
6.0 |
YSF-8026 |
0.370 |
||||
|
25 |
5117 |
6.2 |
YSF-8026 |
0.370 |
||||
|
30 |
5566 |
6.6 |
YSF-8026 |
0.370 |
||||
|
35 |
6104 |
8.3 |
YSF-8026 |
0.370 |
||||
|
5.6 |
560 |
42.5 |
1450 |
15 |
6595 |
15.4 |
YSF-7124 |
0.370 |
|
20 |
8667 |
17.2 |
YSF-8014 |
0.550 |
||||
|
25 |
10739 |
17.7 |
YSF-8024 |
0.750 |
||||
|
30 |
11689 |
19.0 |
YT90S-4 |
1.100 |
||||
|
35 |
12812 |
23.7 |
YT90S-4 |
1.100 |
||||
|
28.1 |
960 |
15 |
4360 |
6.8 |
YSF-8026 |
0.370 |
||
|
20 |
5730 |
7.5 |
YSF-8026 |
0.370 |
||||
|
25 |
7101 |
7.7 |
YSF-8026 |
0.370 |
||||
|
30 |
7724 |
8.3 |
YSF-8026 |
0.370 |
||||
|
35 |
8471 |
10.3 |
YSF-8026 |
0.370 |
||||
|
6.3 |
630 |
47.8 |
1450 |
15 |
9393 |
19.6 |
YSF-8024 |
0.750 |
|
20 |
12345 |
21.8 |
YT90S-4 |
1.100 |
||||
|
25 |
15297 |
22.4 |
YT90L-4 |
1.500 |
||||
|
30 |
16639 |
24.1 |
YT90L-4 |
1.500 |
||||
|
35 |
18250 |
30.0 |
YT100L-4 |
2.200 |
||||
|
31.7 |
960 |
15 |
6219 |
8.60 |
YSF-8026 |
0.37 |
||
|
20 |
8173 |
9.60 |
YSF-8026 |
0.37 |
||||
|
25 |
10128 |
9.80 |
YSF-8026 |
0.37 |
||||
|
30 |
11016 |
10.6 |
YT90S-6 |
0.75 |
||||
|
35 |
12082 |
13.1 |
YT90S-6 |
0.75 |
||||
|
7.1 |
710
|
53.9
|
1450 |
15 |
13444 |
24.9 |
YT90L-4 |
1.50 |
|
20 |
17670 |
27.7 |
YT100L1-4 |
2.20 |
||||
|
25 |
21895 |
28.4 |
YT100L1-4 |
2.20 |
||||
|
30 |
23815 |
30.6 |
YT100L2-4 |
3.00 |
||||
|
35 |
26120 |
38.0 |
YT112M-4 |
4.00 |
||||
|
36.7
|
960
|
15 |
8902 |
11.0 |
YT90S-6 |
0.75 |
||
|
20 |
11700 |
12.2 |
YT90S-6 |
0.75 |
||||
|
25 |
14498 |
12.5 |
YT90S-6 |
0.75 |
||||
|
30 |
15769 |
13.4 |
YT90S-6 |
0.75 |
||||
|
35 |
17296 |
16.7 |
YT90L-6 |
1.10 |
||||
|
8.0 |
800
|
60.7 |
1450 |
15 |
19235 |
31.6 |
YT100L1-6 |
2.20 |
|
20 |
25280 |
35.2 |
YT112M-4 |
4.00 |
||||
|
25 |
31325 |
36.1 |
YT112M-4 |
4.00 |
||||
|
30 |
34078 |
38.8 |
YT132S-4 |
5.50 |
||||
|
35 |
37370 |
48.3 |
YT132M-4 |
7.50 |
||||
|
40.2 |
960
|
15 |
12733 |
13.9 |
YT90S-6 |
0.75 |
||
|
20 |
16735 |
15.4 |
YT90L-6 |
1.10 |
||||
|
25 |
20737 |
15.8 |
YT100L-6 |
1.50 |
||||
|
30 |
22556 |
|
YT100L-6 |
1.50 |
||||
|
35 |
24739 |
17.0 |
YT112M-6 |
2.20 |
||||
|
9.0
|
900
|
45.2
|
960 |
15 |
18132 |
17.5 |
YT100L-6 |
1.50 |
|
20 |
23830 |
19.5 |
YT112M-6 |
2.20 |
||||
|
25 |
29529 |
20.0 |
YT132S-6 |
3.00 |
||||
|
30 |
32119 |
21.5 |
YT132S-6 |
3.00 |
||||
|
35 |
35227 |
26.8 |
YT132M1-6 |
4.00 |
||||
|
10.0
|
1000
|
50.3 |
960 |
15 |
24874 |
21.7 |
YT112M-6 |
2.20 |
|
20 |
32691 |
24.1 |
YT132S-6 |
3.00 |
||||
|
25 |
40508 |
24.7 |
YT132M1-6 |
4.00 |
||||
|
30 |
44062 |
26.6 |
YT132M1-6 |
4.00 |
||||
|
35 |
48326 |
33.1 |
YT160M-6 |
7.50 |
||||
|
11.2 |
1120 |
56.3 |
960 |
15 |
34944 |
27.2 |
YT132M1-6 |
4.00 |
|
20 |
45927 |
30.3 |
YT132M2-6 |
5.50 |
||||
|
25 |
56909 |
31.0 |
YT160M-6 |
7.50 |
||||
|
30 |
61901 |
34.4 |
YT160M-6 |
7.50 |
||||
|
35 |
67892 |
41.5 |
YT160L-6 |
11.00 |
||||
